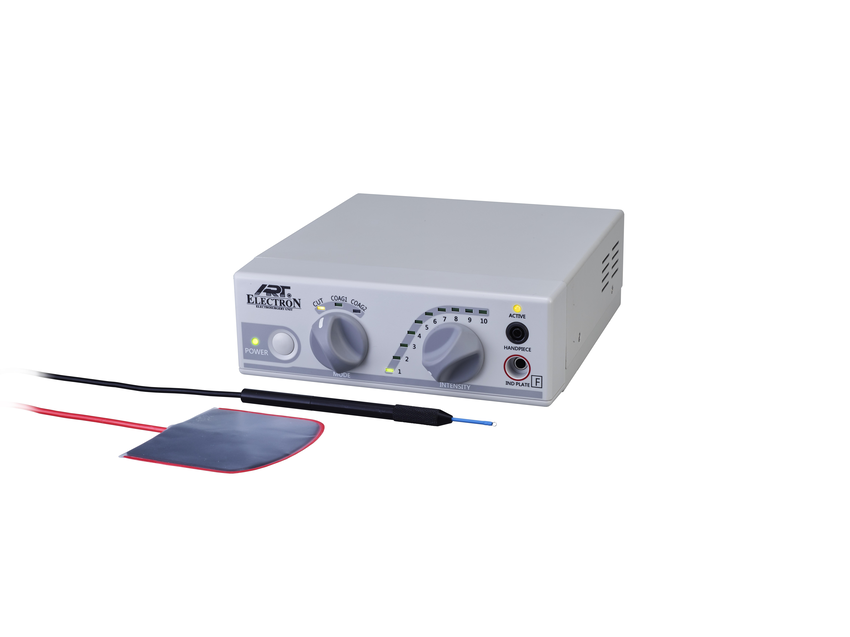

Electrosurgery Unit ART-E1 110V

Electron (ART-E1) Electrosurgery Unit is a stand-alone device used for cutting and coagulating. It has 10 power level settings and 3 operating modes: Cut, Coag 1, and Coag 2. The grounding plate (included) is required for operation.

Specifications:

• Maximum power output: 50W (@ 400 ohm load)
• Power supply: 110V
• Work frequency: 1.5~1.7MHz±5%
• Dimension (cm): 23(L) x 22.5(W) x 8.5(H)
• Hand piece cable length: 190 cm
• Indifference plate cable length: 190 cm
• Weight: 12lbs

Included Parts & Accessories:

• Electron (ART E1) Main Unit
• Power Cord
• PP0031-002: Universal foot switch
• EU0004-002: Indifference/ Grounding plate
• EU0003-032: E1 hand piece
• TE0002-002: Assorted electrode set of 7 (includes the following electrodes):
  • TE0001-012: T1 Diamond shaped electrode
  • TE0001-022: T2 Small loop electrode
  • TE0001-032: T3 Large loop electrode
  • TE0001-042: T4 Fine wire electrode
  • TE0001-052: T5 Heavy wire electrode
  • TE0001-072: T7 Oval loop electrode
  • TE0001-092: T9 Heavy ball electrode
